The Apex PSII series is the newest revision of the P series. The PII series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PSII features an industry standard metric output flange, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies.
OVERVIEW
Output torque
T2N :8 Nm – 459 Nm
Ratios:
1-stage: 3 / 4 / 5 / 7 / 9 / 10
2-stage: 15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 81 / 100
Low backlash
1-stage: ≤ 6 ~ 8 arcmin
2-stage: ≤ 8 ~ 10 arcmin
High efficiency
1-stage: ≧ 97%
2-stage: ≧ 94%
Easy mount
Low noise
Compact structure

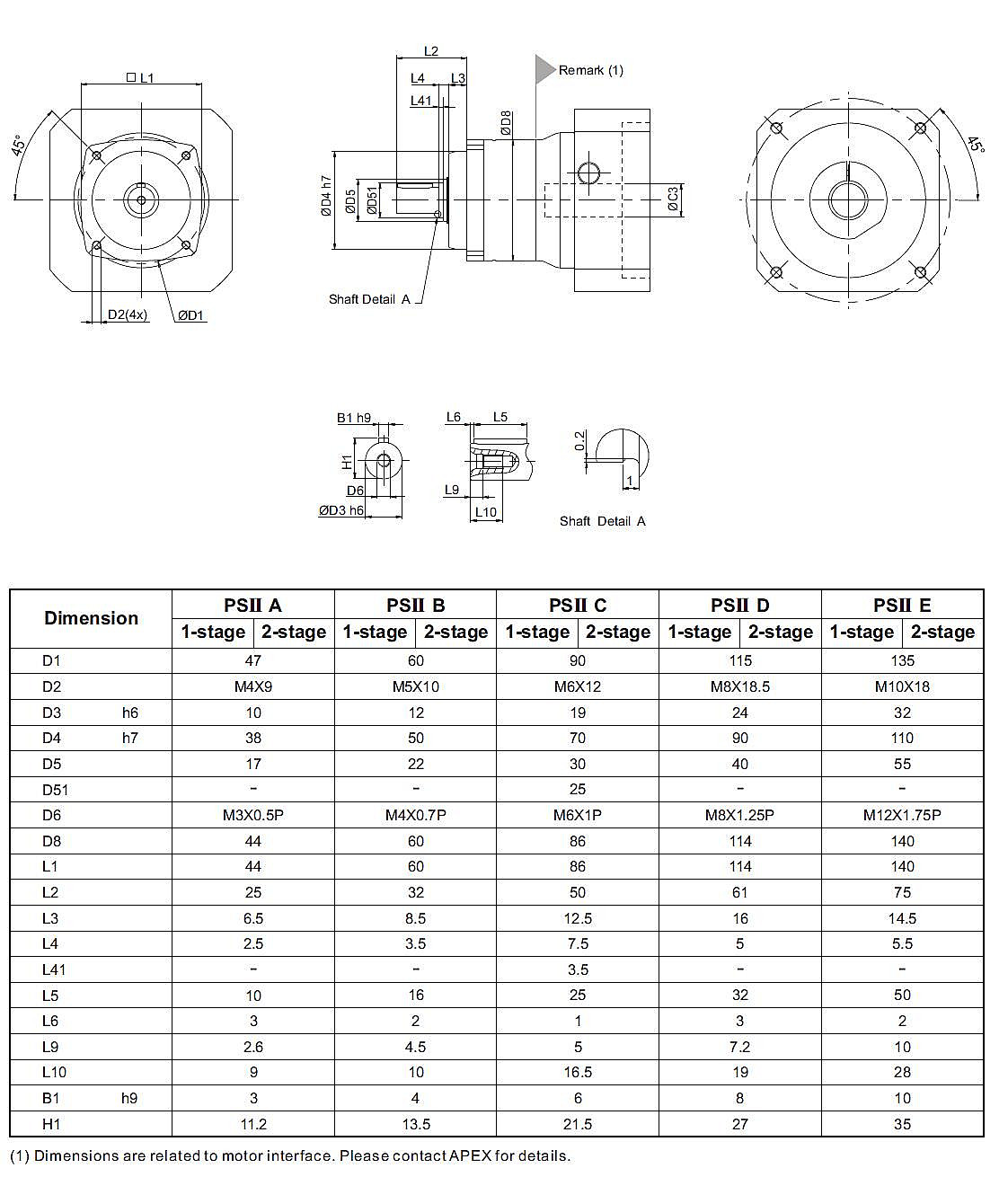

SIZE
PSII A / PSII B / PSII C / PSII D / PSII E
[real3dflipbook id=’58’]
Planetary Gearbox
New Generation PⅡ – Series
PAⅡ – Series
– Economic
– High efficiency
– Low noise
– Reduced backlash
– Optimized inertia moment
– Limited temperature rise
– Long service life
– Flexible mounting diameters
– Minimized size and weight
