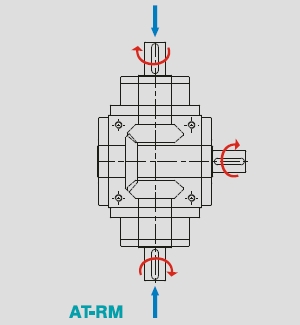

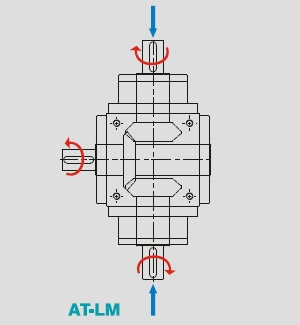

The Apex AT-LM/RM series is a right angle spiral bevel gearbox with three shafts joined by three spiral bevel gears. Suitable for servo and power transmission/line shafting applications, the AT-LM/RM provides a single input, dual right angle ouput shafts with opposite rotation sense.
NEW! – Now available in Carbon Steel as ATB version!

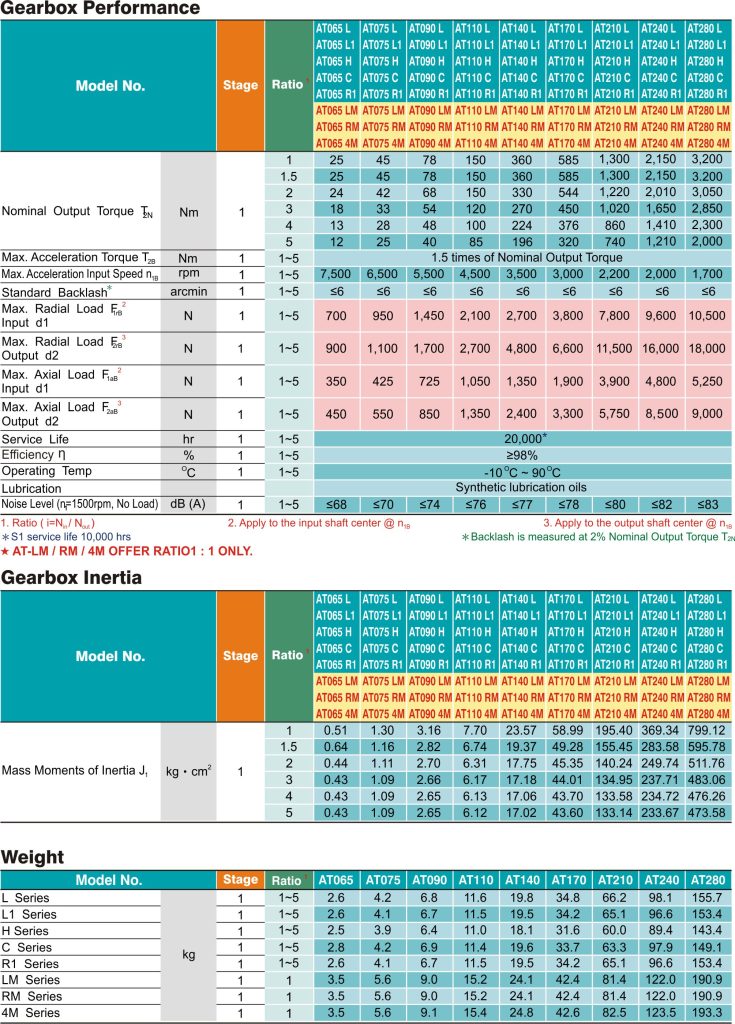

OVERVIEW
Output torque
T2N :12 Nm – 3,200 Nm
Ratios:
1-stage :1
Low backlash
1-stage :≤6 arcmin
High efficiency
1-stage : ≧ 98%
Easy mount
Low noise
Compact structure

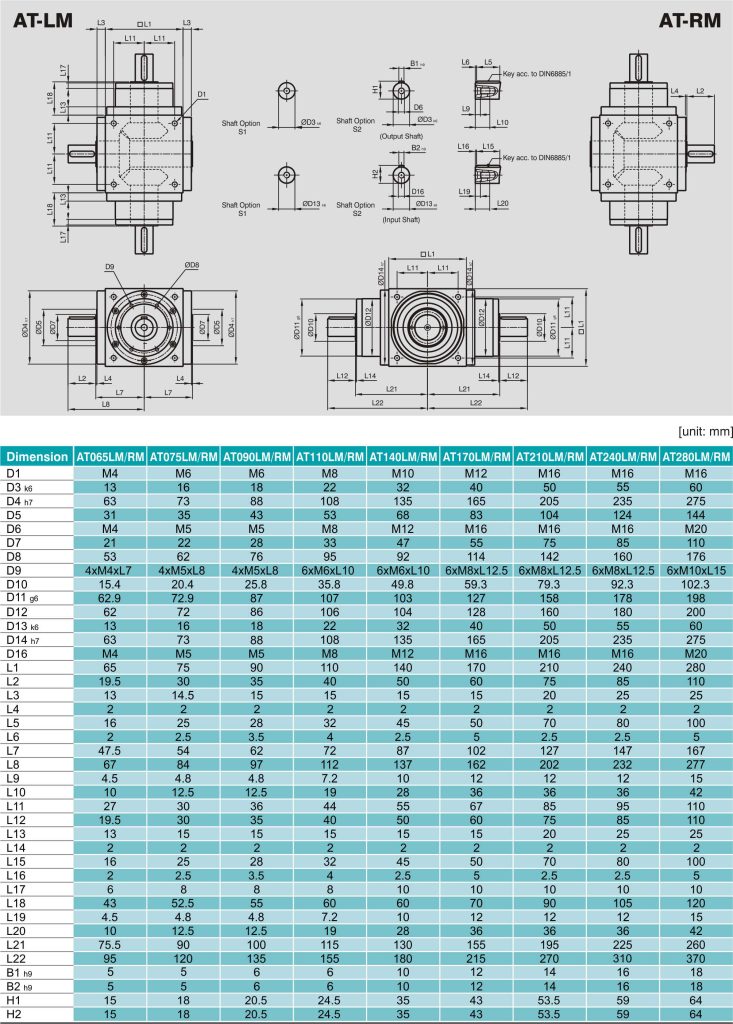

SIZE
AT065LM / AT075LM / AT090LM / AT110LM / AT140LM / AT170LM / AT210LM / AT240LM / AT280LM / AT065RM / AT075RM / AT090RM / AT110RM / AT140RM / AT170RM / AT210RM / AT240RM / AT280RM
