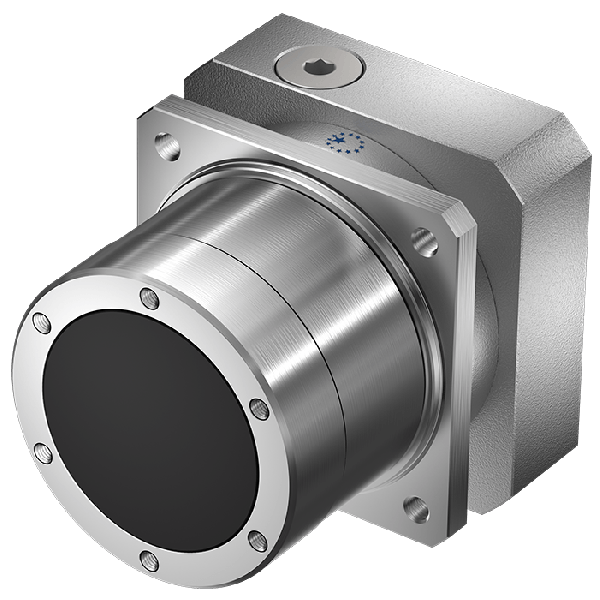

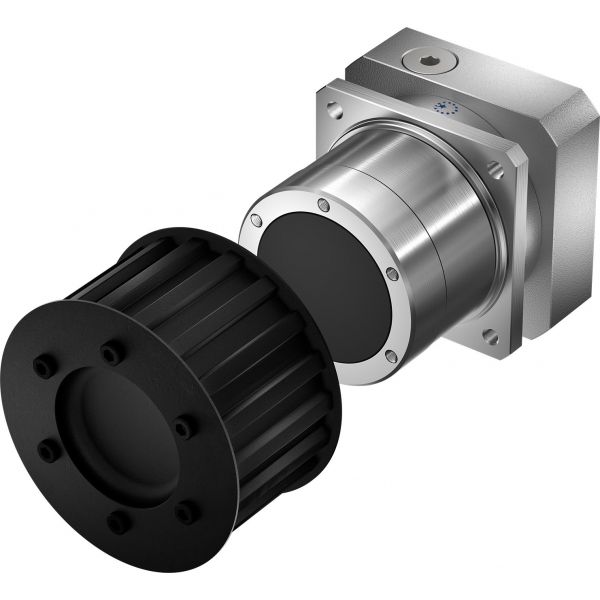

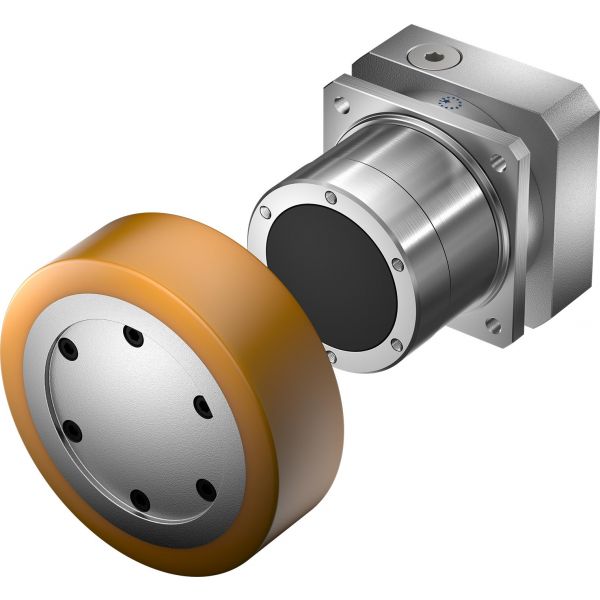

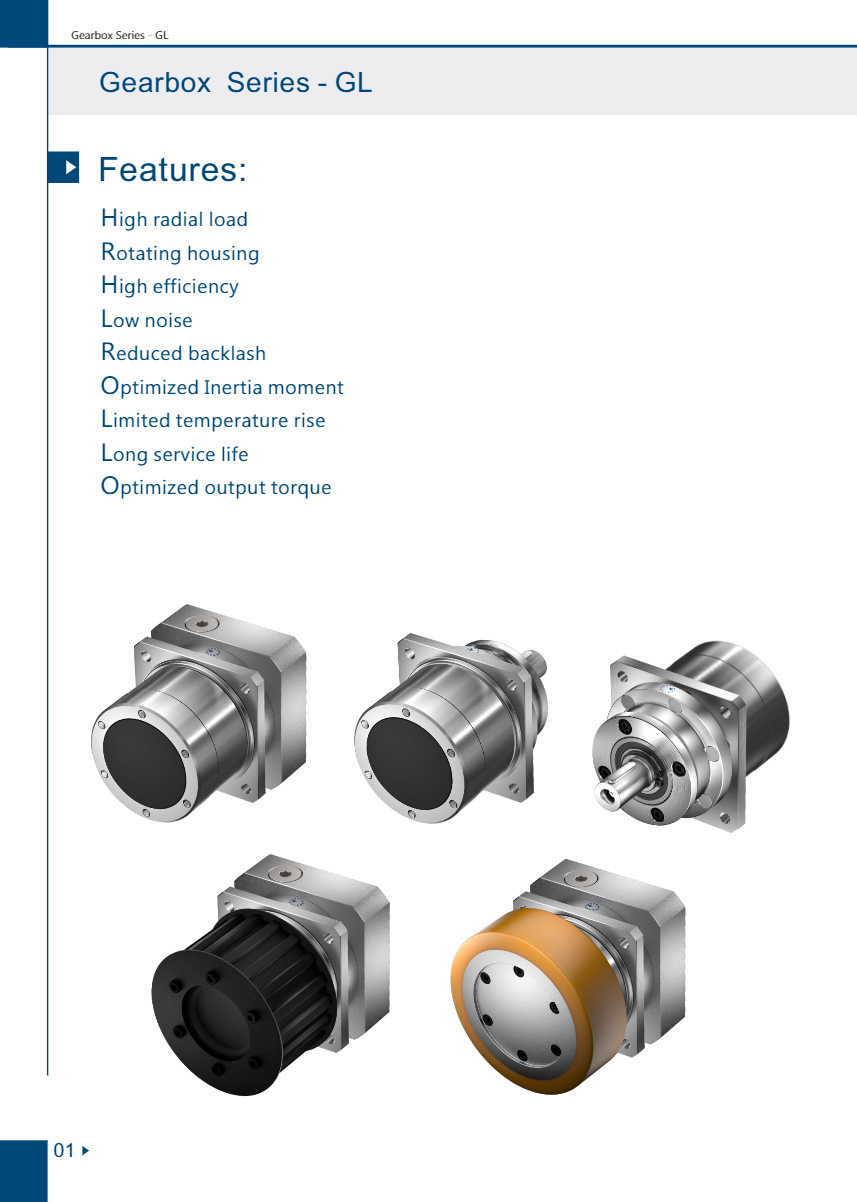

The Apex GL Series is a precision planetary gearbox designed for AGV applications. The unique rotary housing allows a drive wheel or pully to be mounted over the exterior, burying a large part of the gearbox in the wheel or pulley. The result is space savings in the robot or cart.
The GL is also available with a shaft input (GLS), which allows the gearbox to be driven by belt and pulley.
OVERVIEW
Output torque
T2N : 21 Nm – 355 Nm
Ratios:
1-stage :2 / 3 / 4 / 6 / 9
2-stage :10 / 15 / 20 / 24 / 30 / 36 / 40 / 45 / 60 / 90
Low backlash
1-stage : ≦ 3
2-stage : ≦ 5
High efficiency
1-stage : ≥ 97%
2-stage : ≥ 94%
High radial load
Rotating housing/strong>
SIZE
GL 082 / GL 100 / GL 132
