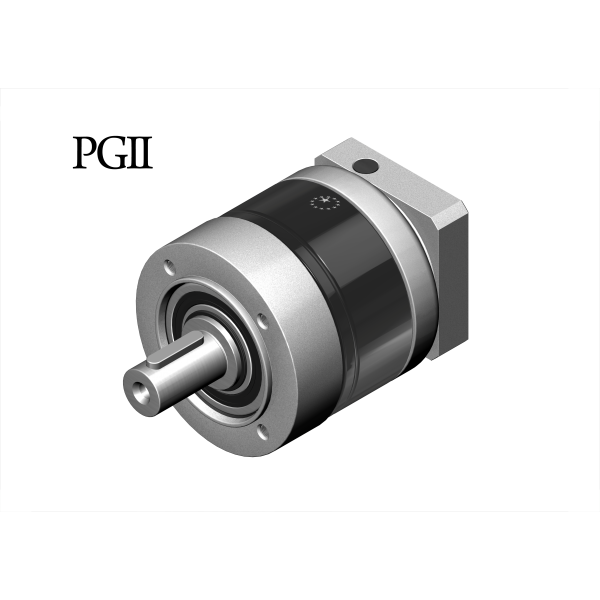

PGII-SERIES HIGH PRECISION PLANETARY GEARBOXES

The PII series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PGII features an industry standard metric c-face output flange, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies.

OVERVIEW

Output torque
T2N :8 Nm – 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100
3-stage :120 / 160 / 200 / 280 / 350 / 500 / 700 / 1000
Low backlash
1-stage :≤ 6 ~ 8 arcmin
2-stage :≤ 8 ~ 10 arcmin
3-stage :≤ 10 ~ 12 arcmin
High efficiency
1-stage :≧ 97%
2-stage :≧ 94%
3-stage :≧ 91%
Easy mount
Low noise
Compact structure
