The MD Series is a high precision rotary flange style planetary gearbox with less than 3 arc minute backlash. Based on the AH Series, the MD trades accuracy for a lower cost option. Case Hardened and ground gearing provide high accuracy and high wear resistance for the gear train. Compact structure provides high torsional rigidity, taper roller bearing support provides high axial and moment load capacity.

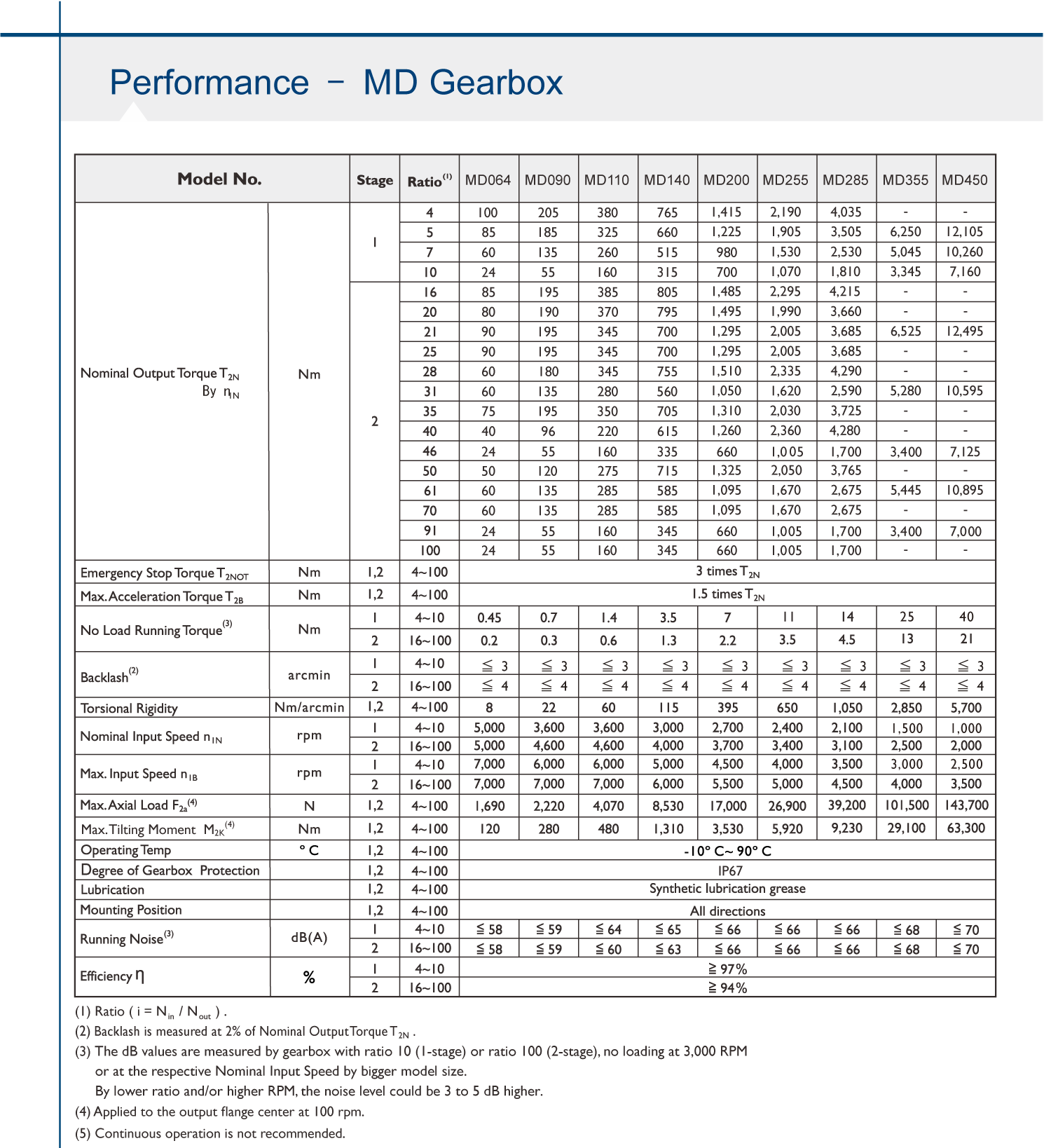

OVERVIEW
Output torque
T2N : 24 Nm – 12495 Nm
Ratios:
1-stage : 4 / 5 / 7 / 10
2-stage : 16 / 20 / 21 / 25 / 28 / 31 / 35 / 40 / 46 / 50 / 61 / 70 / 91 / 100
Low backlash
1-stage :≤ 3 arcmin
2-stage :≤ 4 arcmin
High efficiency
1-stage :≧ 97 %
2-stage :≧ 94 %
Persistence of Low Backlash
Long Life-Time

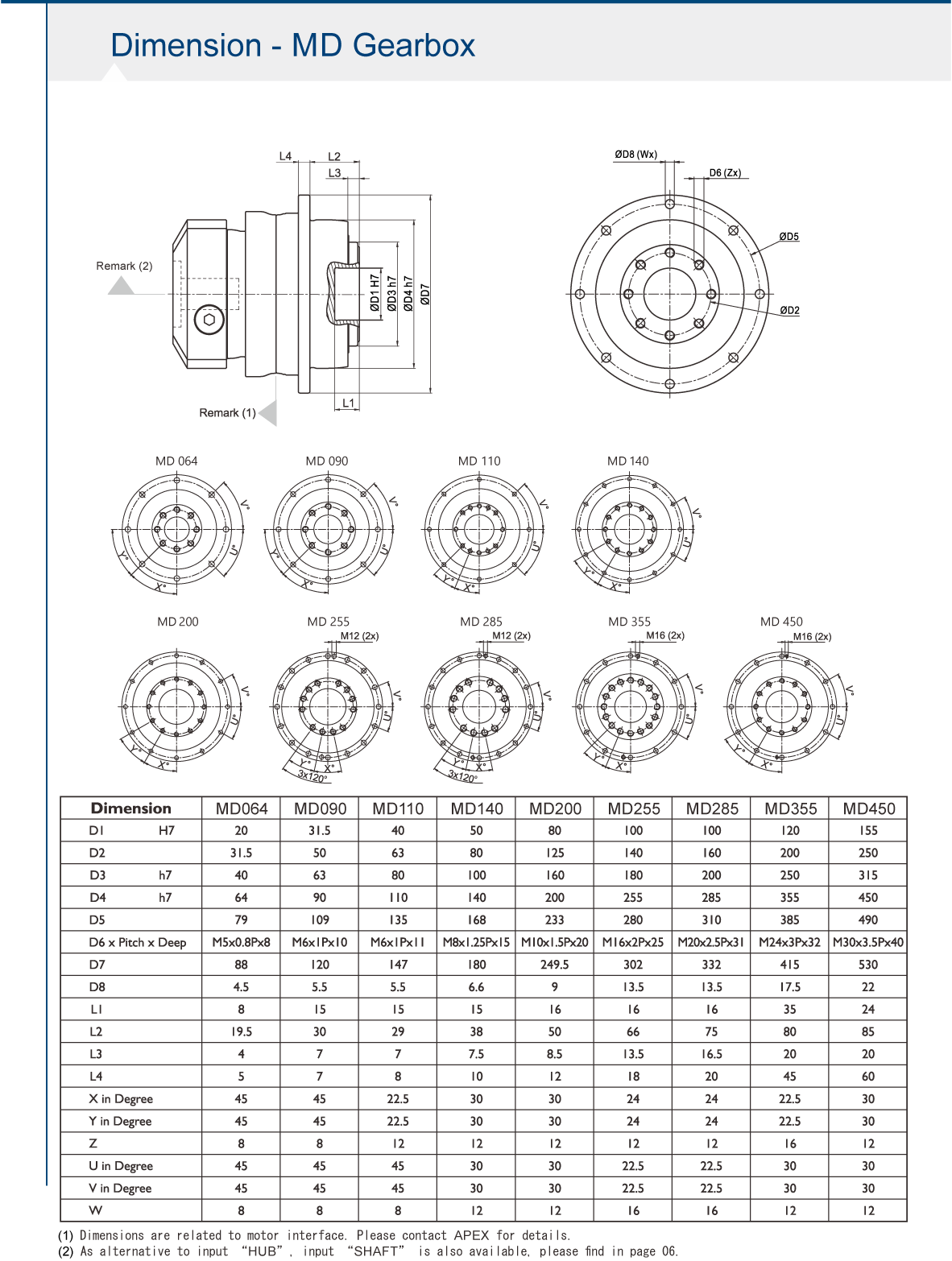

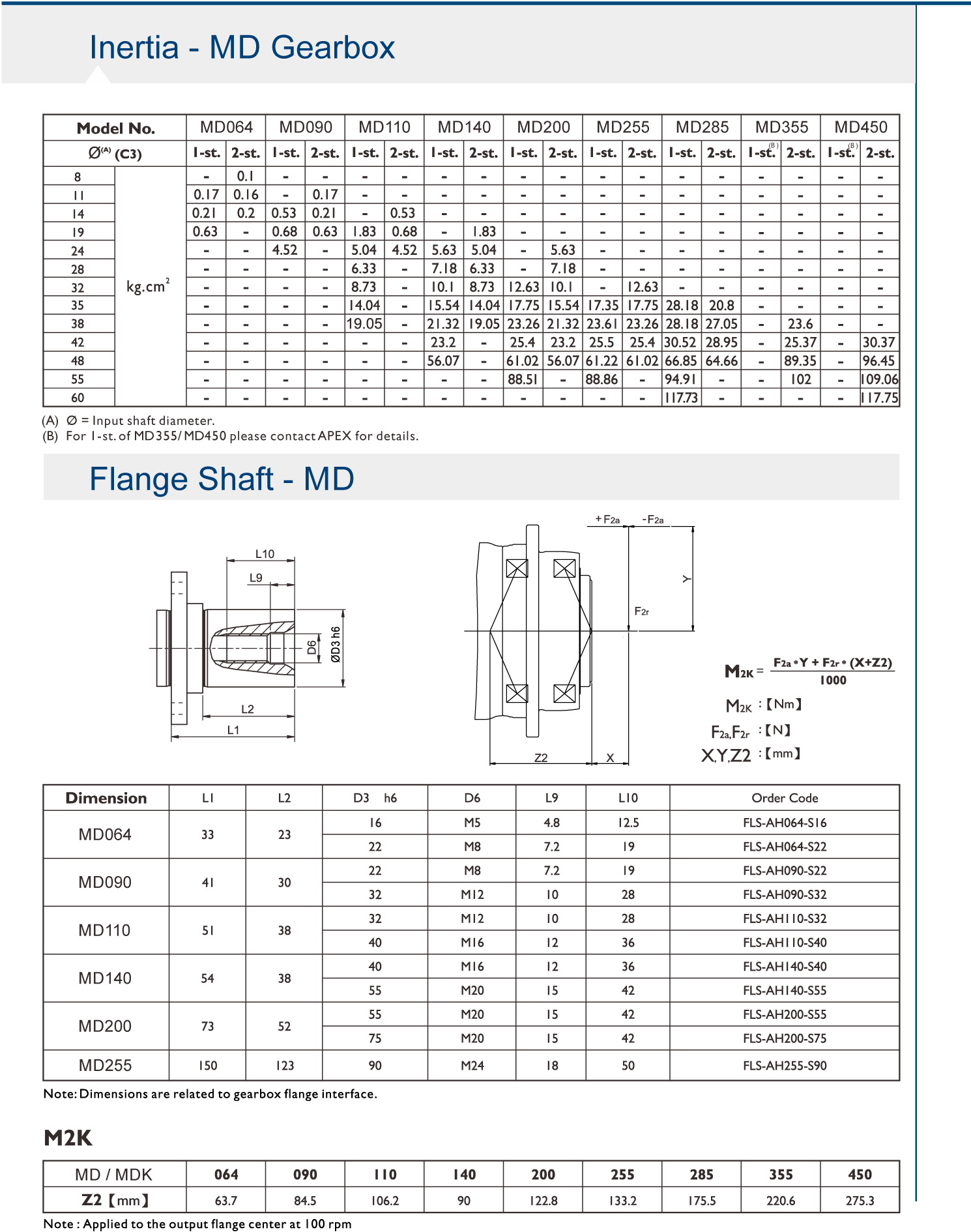

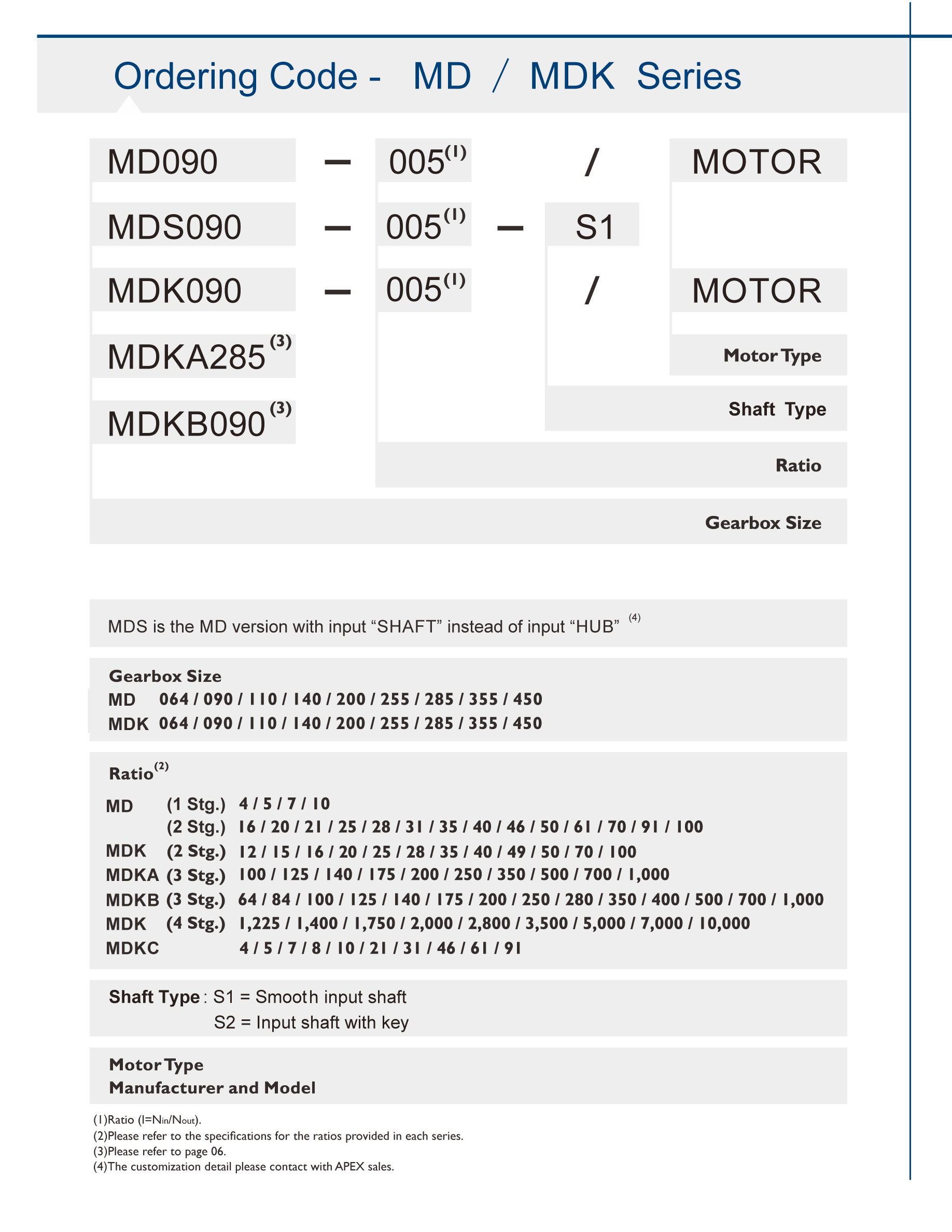

SIZE
MD064 / MD090 / MD110 / MD140 / MD200 / MD255 / MD285 / MD355 / MD450
